ZHEJIANG YINFEN GROUP

Nonwoven machine
Nonwoven machine
Nonwoven machine
Nonwoven machine
Nonwoven machine
Nonwoven machine

Nonwoven machine

Teslim süresi: 60 Gün

Şimdi başvurun Sepete Ekle

Temel bilgi

    model numarası.: AL nonwoven machine

Additional Info

    Ambalaj: Conventional packing and wood packing

    Marka: AL

    Menşe yeri: Zhejiang, China (Mainland)

Ürün Açıklaması



 AL  Nonwoven Fabric Machine
Product Description


AL Nonwoven Fabric Machine

 This nonwoven fabric production line  is the professional manufacturing non-woven fabric equipment. Our company conjugates overseas advanced technology and domestic producing situation, gives a sober assessment of the situation, developed autonomously into the professional equipment. It is featured by lower investment, compact construction, small area, simple production technology, simple operation, saving of labour and widely compatibility and so on.







Technical Parameter

Model No. AL-1600S AL-2400SS AL-3200SMS AL-4200SMS
Width 1600mm 2400mm 3200mm 4200mm
Fiber Denier

≤2.3D

≤2.3D

≤2.3D

≤2.3D

Fabric GSM

9~250g/m2

9~250g/m2

9~250g/m2

9~250g/m2

Pattern

cross,line ,diamend

cross,line,diamend

diamend, line

diamend, line

Screw Dia.

130, 30:1

150, 30:1

170, 30:1

170, 30:1

Machine

10~250m/min

10~250m/min

10~250m/min

10~250m/min

Capacity

1500T/Year

4800T /Year

6500T/Year

8500T/Year

Power input

200 KVA

350 KVA

1000KVA

1200KVA

Power Consumption

250KVA

130KW

800KW

1000KW

Machine Size

15M*10M*1 3M

 15 M*12M*1 3M

25M*14M*1 3M

25M*15M*1 3M

Container Requirement

 5X40'HQ

9 X40'HQ

15X40'HQ

17X40'HQ




Detailed Images


 Some Part Machine Show

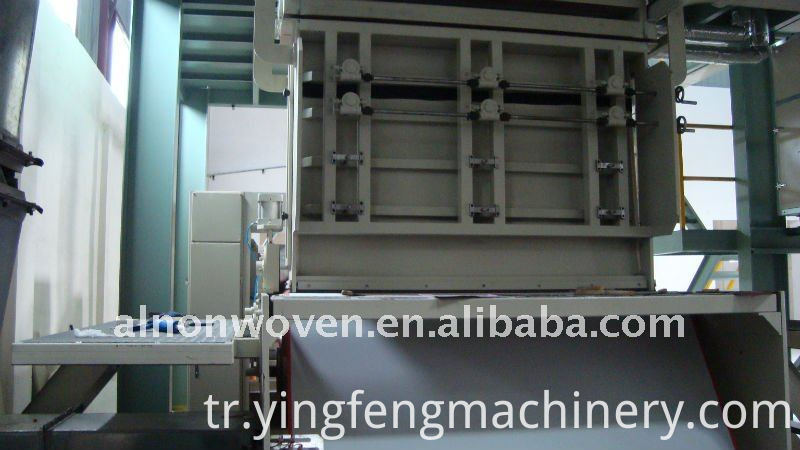

               Name:Web Forming Machine

    Speed:10-150m/min for S type

                 120-250m/min fror SS/SMS type

                       Max air passing through:10000m³/h

              Max negative pressure:500pa

                Temperature near the wed:20-30℃

Motor:7.5KW for 1.6m



                   10.5KW for 3.2m

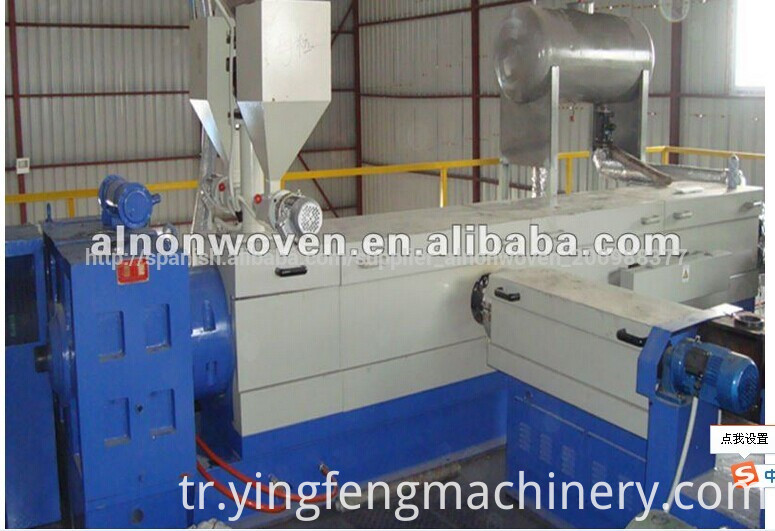

                      Name :Main Extuder machine

Diameter:135mm for 1.6m

                         170mm for 3.2m

                                                 L/D=30:1

       Max Speed:75r/min for 1.6m

                              85 r/min for 3.2m

  Motor:90KW for 1.6m

              132KW for 3.2m

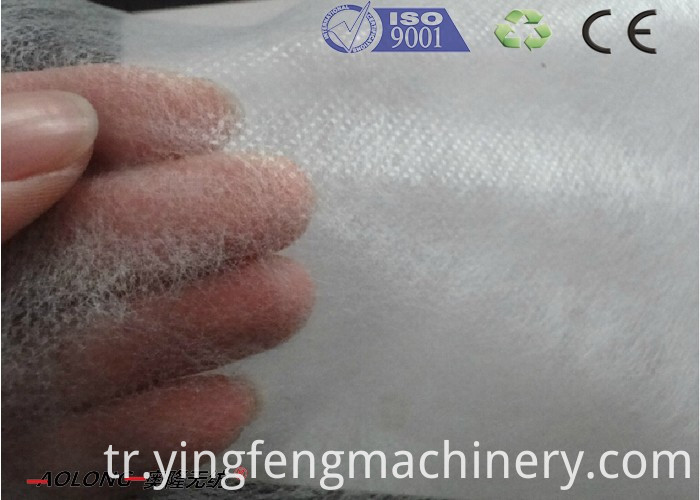

Product show







The S modle machine product be used  for :shopping bag,agricultural cover,cloth package,sigle time used product and so on.

The SS modle machine product be used  for :baby diaper,sanitary napkin,children sleeping bags and so on.

The SMS modle machine product be used  for :operation suit,operation mask,operation

tablecloth,mask and so on.



Certifications











Packing & Delivery






FAQ


A. How I get right Machine for myself , If I have no ideal about  the machine ?

B: It doesn't matter. Just tell me what kind of  fabric that you want  the machine , how much you want for produce  and factory szie etc. We will design it  for you.

A.We already have one factory ,but there is a little different  in the size .For example,  the height  can't meet the 13m , only 12m?

B:Don't worry. Your machine will be customized.

A How to make sure your machine's quality?how about the service?

B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service  within production lifetime.
